AU$1,200.00 - AU$1,300.00
AMR500 side-draft carbureted kit
Blower Type
Manifold Style
Product Details
Our carbureted AMR based kits are designed to work on 40/50hp upright style Type 1 engines using either a DCOE, S&S or HSR carburettor.

Featuring a wider dedicated drive belt to eliminate slip and overcome the excessive load on generator and alternator bearings found with single belt serpentine setups.

Our AMR500 based kits also feature square manifold ports to maximise flow capabilities and make the most of the available boost.

Our high flow tee manifold will connect to both dual and singleport end castings and can also be used with CB EFI manifolds

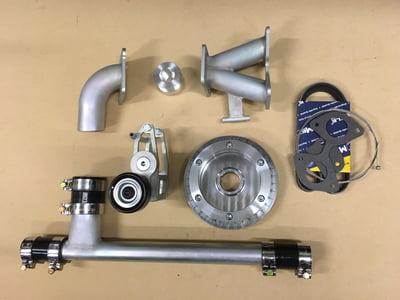

Available with a range of inlet manifold styles you can use this kit with Weber DCOE's, Dellorto DHLA's, Mikuni HSR, S&S or with our own Joe Blow throttle body. We also offer this kit with AMR300 style flanges for smaller capacity engines. Just select the style of manifolds you need when ordering. This kit ships with the following items:

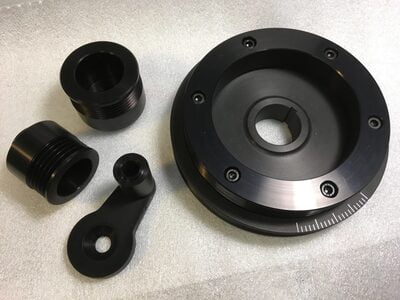

  • Billet 6160 blower pulley
  • Billet 6160 crank pulley

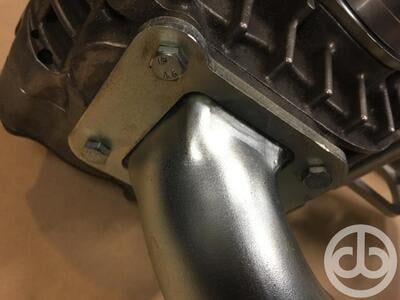

  • High-Flow square port carburettor to blower manifold
  • High-Flow square port lower outlet manifold
  • High-Flow large diameter tee manifold.
  • Supercharger stand with integrated tensioner assembly
  • High pressure silicone hoses
  • Heavy duty high pressure hose clamps
  • High quality 5PK drive belt
  • Throttle cable kit
  • Gasket set

Please note:  This kit does not include the carburettor or blower. Those items are available to purchase separately.
