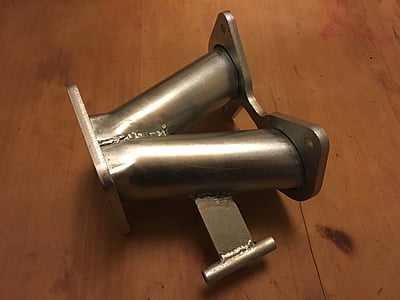

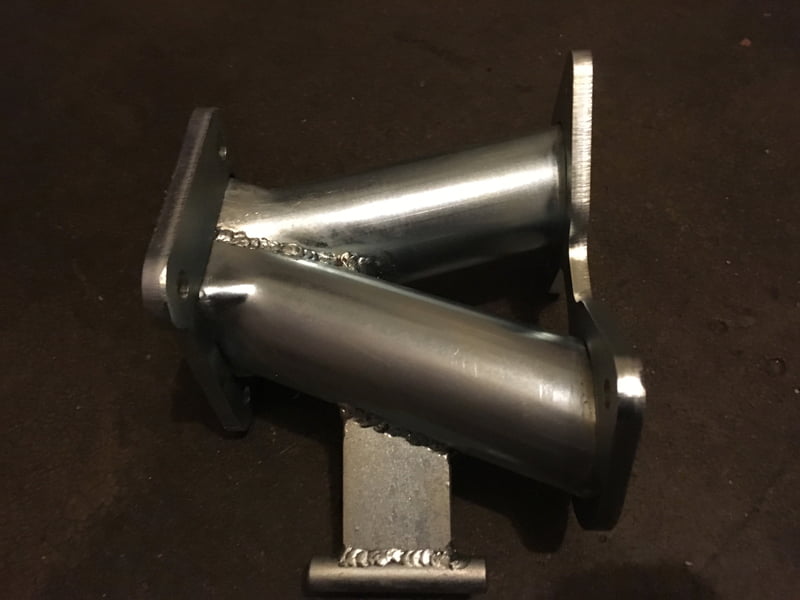

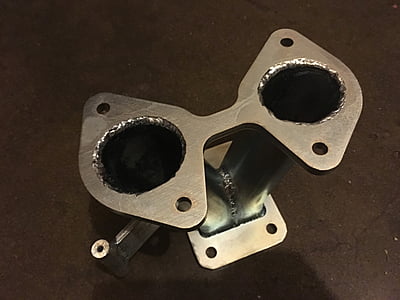

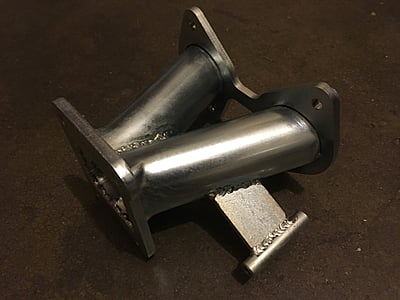

This is the same steel manifold supplied with our Sidedraft kits and allows fitment of a Weber DCOE or Dellorto DHLA to AMR500 supercharger.
- Throttle cable mount with integrated adjuster
- Matched square port for higher flow
- Plasma cut steel TIG welded
- Ground mating faces to ensure tight seal.
- Basic paint coating as standard for corrosion protection
- Custom finishes available on request
- Can also be supplied with IDF bolt pattern and different flange orientation on request
- Suitable for use with both Weber DCOE40 or Dellorto DHLA40 sidedraft carburettors
- Cable guide suitable for Joe Blow throttle wheel or standard Throttle lever arm
- Tapped for M8 bolts
