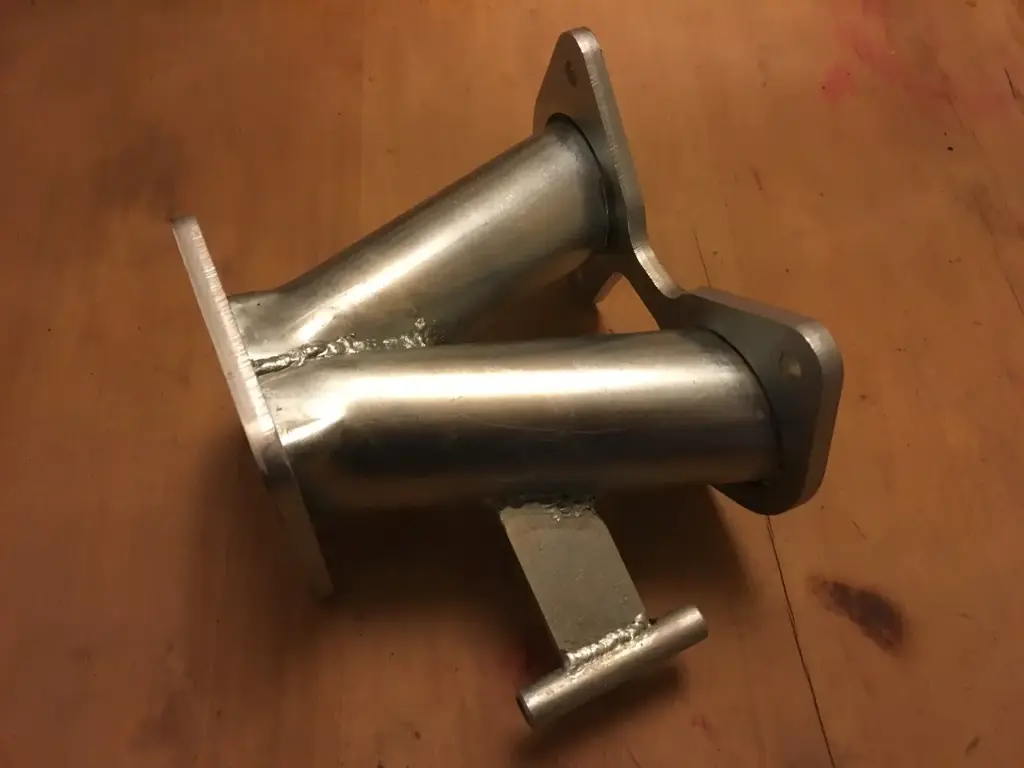

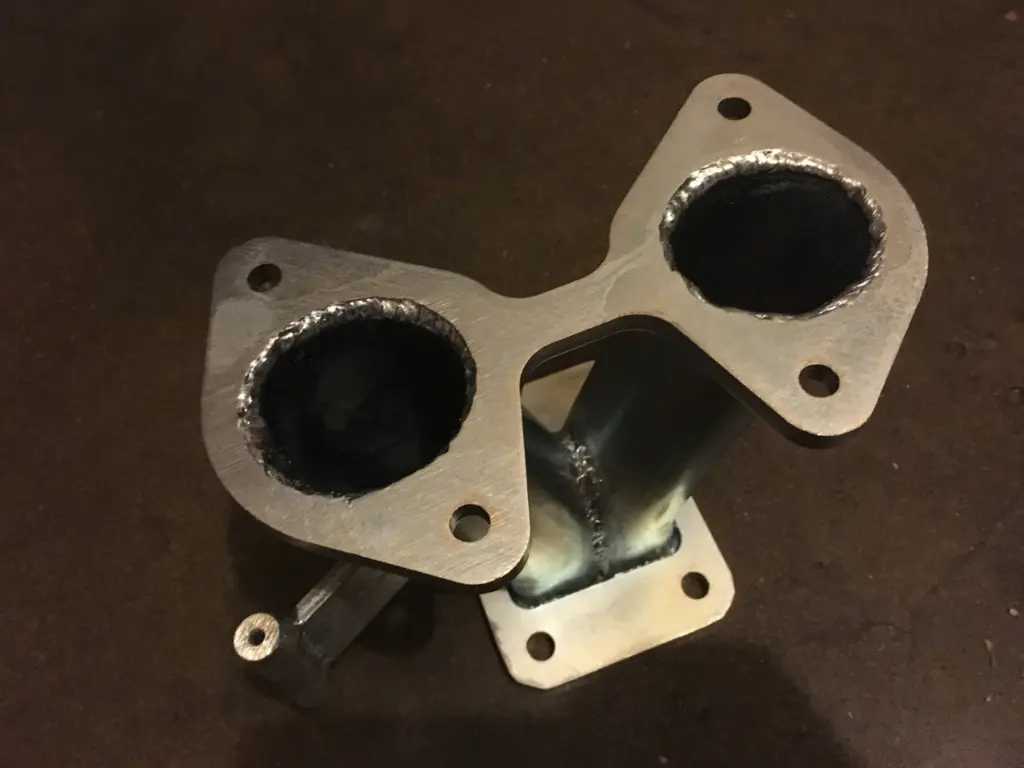

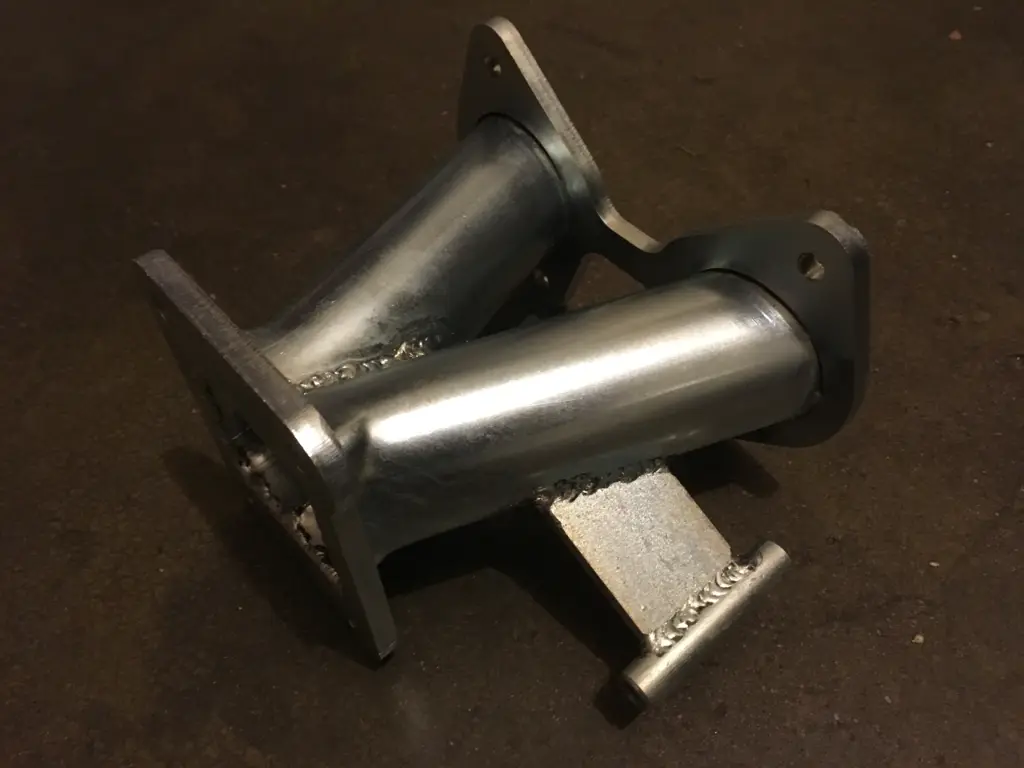

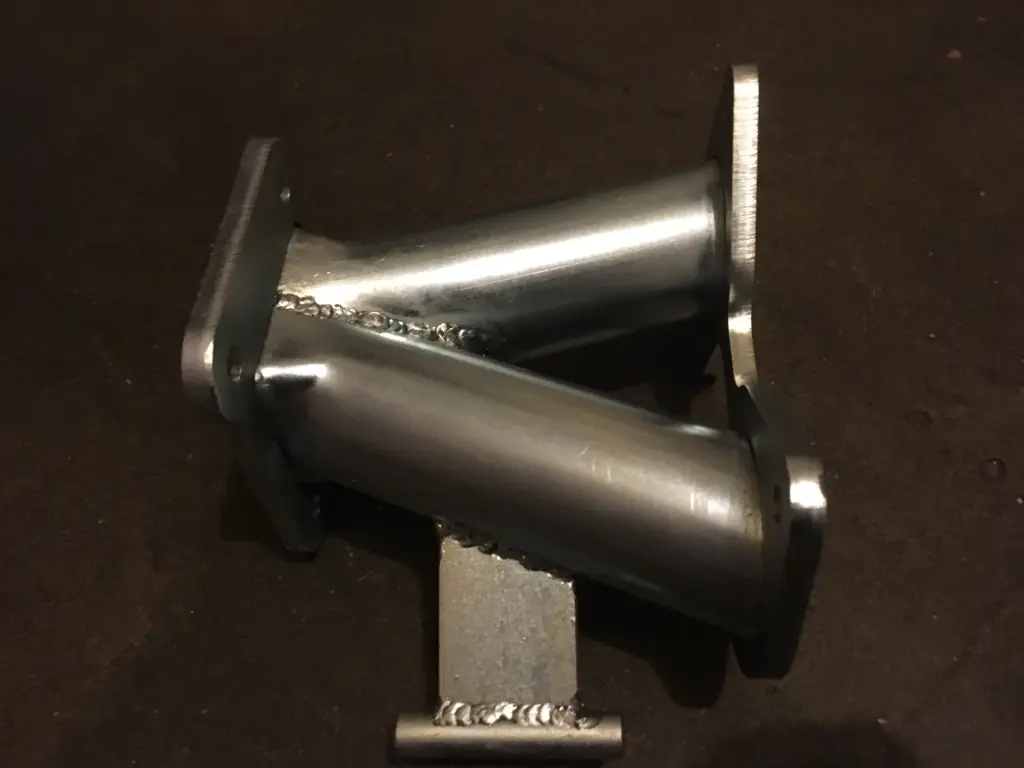

AMR500 to DCOE Manifold
This is the same manifold supplied with our Sidedraft kits and allows fitment of a Weber DCOE or Dellorto DHLA to an AMR500 supercharger.
- Throttle cable mount with integrated adjuster
- Matched square port for higher flow
- Plasma cut TIG welded steel
- Ground mating faces to ensure tight seal.
- Basic paint coating as standard for corrosion protection
- Custom finishes available on request (zinc plating shown)
- Can also be supplied with IDF bolt pattern and different flange orientation on request. For example set up for downdraft IDF. Just reach and and let us know what you need.
Fitment Notes
- Suitable for use with both Weber DCOE40 or Dellorto DHLA40 sidedraft carburettors
- Cable guide suitable for Joe Blow throttle wheel or standard Throttle lever arm
- Tapped for M8 bolts
